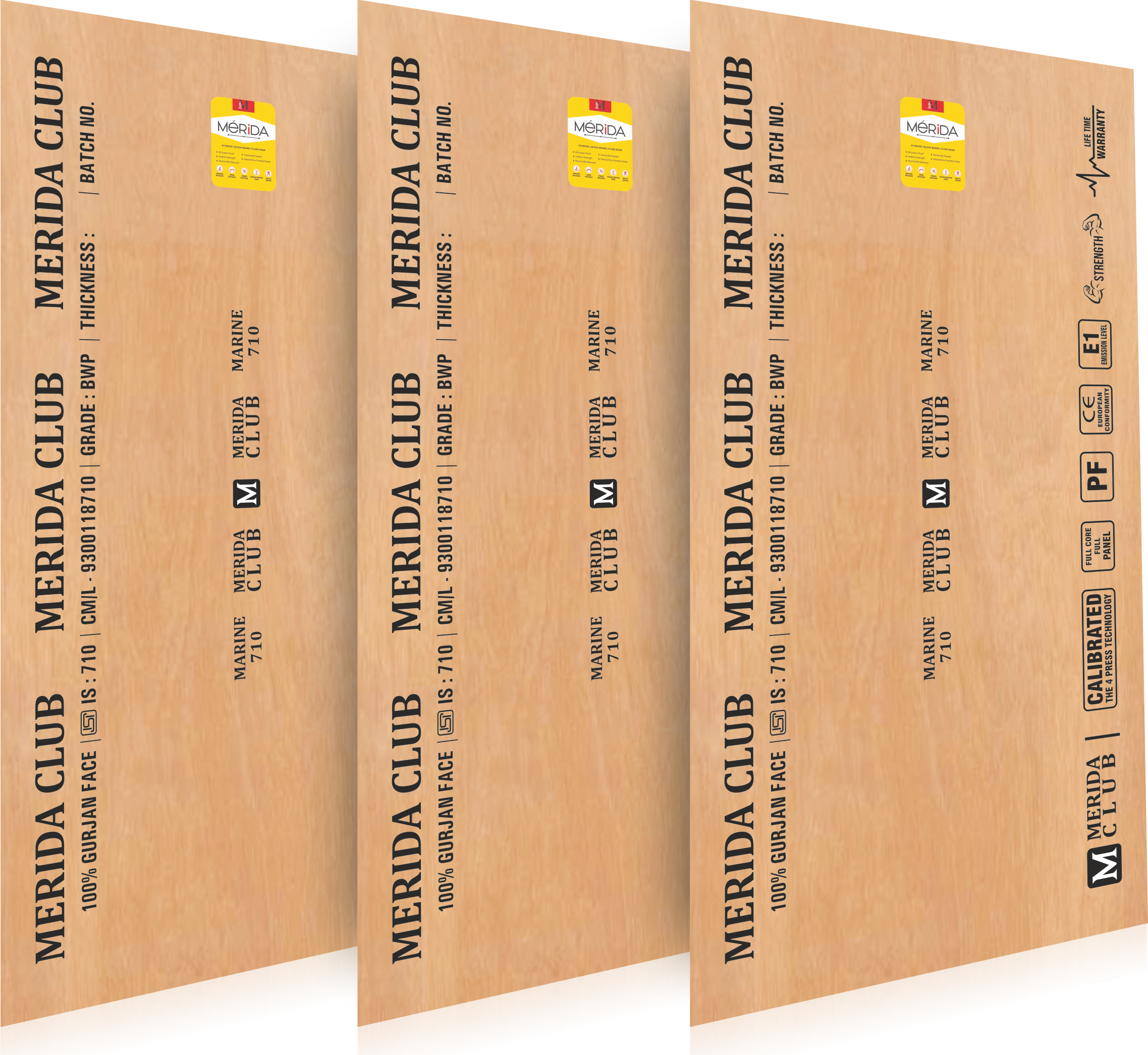

MERIDA CLUB Plywoods are industry’s leading zero core gap and calibrated plywood with precision of thickness. Its comes with double side calibrated and 4 press technology.
It provides total protection against termite, borer & bacteria, owing to least HCHO emission, it provides no teary eyes or breathing suffocation, ensuring hassle free life.
CLUB PLYWOOD is 100% calibrated marine grade premium plywood manufactured by using hardwood veneer and is bonded with high solid content Phenol Formaldehyde Resin, which is manufactured in a single stage resin making process.
| Test Requirement | Specified Value | Observed Value |
|---|---|---|
| Workmanship and Finishing | Satisfactory | Satisfactory |
| Dimension a) Length b) Width c) Thickness |
+6 mm,-0mm +3mm,-0mm ±5% |
With In Limit With In Limit With In Limit |
| Squareness | 0.20% | 0.12% |
| Edge Straigntness | 0.20% 0.14% | |
| Moisture content | 5-15% | 7.26% |
| Glue shear Strength (Dry) a) Average b) Min Individual c) Adhesion of Plies | 1350 N 1100 N Satisfactory | 1435 1360 Satisfactory |
| Resistance to Water (72 Hr Boiling) a) Average b) Min Individual c) Adhesion of Plies | 1000 N 800 N Satisfactory | 1255 N 1050 N Satisfactory |
| Mycological Test a) Average b) Min Individual c) Adhesion Of Plies | 1000 N 800 N Satisfactory | 1190 N 950 N Satisfactory |
| Tensile Strength a) Along the Grain b) Across the Grain c) Sum of Two(a+b) | 42 N/MM 25 N/MM 84.5N/MM | 65.34 N/MM 36.52 N/MM 101.86 N/MM |
| Static Bonding Strength A) Along the Grain a) Modulus of Elasticity i) Average ii) Min Individual b) Modulus of Rupture i) Average ii) Min Individual B) Across the grain a) Modulus of Elasticity i) Average ii) Min Individual b) Modulus of Rupture i) Average ii) Min Individual | 7500 N/MM 6700N/MM 50 N/MM 45 N/MM 4000 N/MM 3600N/MM 30 N/MM 27 N/MM | 8115 N/MM 7820 N/MM 55.62 N/MM 52.09 N/MM 4832 N/MM 4480 N/MM 34.52 N/MM 31.06 N/MM |
| Static Bonding Strength A) Along the Grain a) Modulus of Elasticity i) Average ii) Min Individual b) Modulus of Rupture i) Average ii) Min Individual B) Across the grain a) Modulus of Elasticity i) Average ii) Min Individual b) Modulus of Rupture i) Average ii) Min Individual | 3750 N/MM 3400N/MM 25 N/MM 22 N/MM 2000 N/MM 1800 N/MM 15 N/MM 13 N/MM | 3842 N/MM 3624 N/MM 28.62 N/MM 24.36 N/MM 2246 N/MM 2065 N/MM 17.25 N/MM 15.33 N/MM |
| Retention Of Preservative | 12 Kg/M | 13.2 Kg/M |
