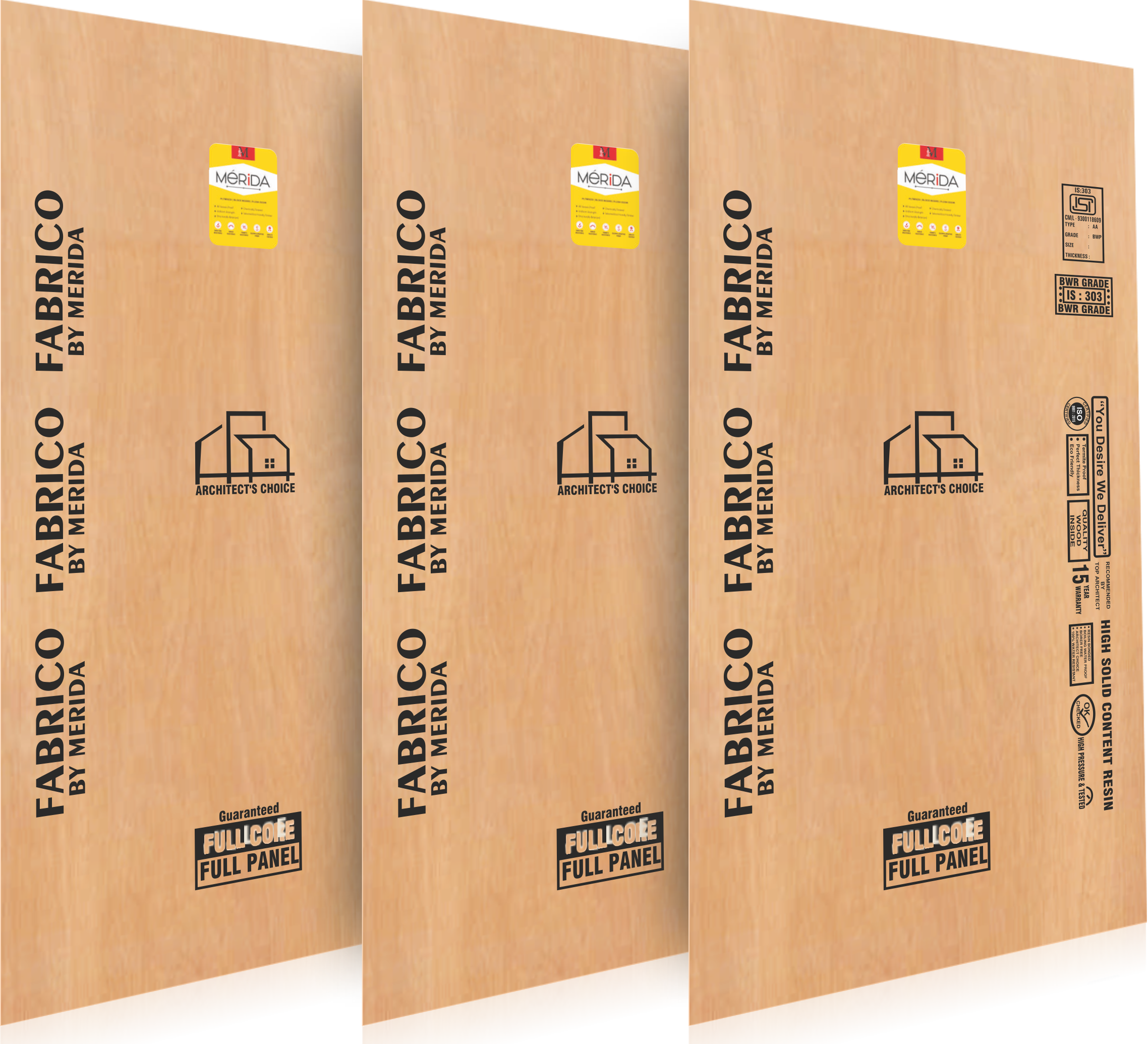

Merida Fabricate Plywood is similar to Merida Gold Plywood in terms of technicalities, features and process. The difference is in face veneer.
Merida Fabricate is made using premium grade Reckon Face Veneer and is vastly used in OEMS and for various designing purposes.
| Test Requirement | Specified Value | Observed Value |
|---|---|---|
| Workmanship and Finishing | Satisfactory | Satisfactory |
| Dimension a) Length b) Width c) Thickness |
+6 mm,-0mm +3mm,-0mm ±5% |
With In Limit With In Limit With In Limit |
| Squareness | 0.20% | 0.12% |
| Edge Straigntness | 0.20% 0.14% | |
| Moisture content | 5-15% | 7.26% |
| Resistance to Water (After cyclic test)-3 cycles of BWR Grade-8hr boiling & 16 hr drying@ 65 | Min Pass Standard | Pass Standard (No De lamination) |
| Modulus of Elasticity, N/MM2 a) Along the Grain i) Average ii) Min Individual b) Across the Grain i) Average ii) Min Individual | 5000 4500 2500 2200 | 6500 4700 2780 2400 |
| Modulus of Elasticity, N/MM2 a) Along the Grain i) Average ii) Min Individual b) Across the Grain i) Average ii) Min Individual | 40 36 20 18 | 55 41 27 22 |
