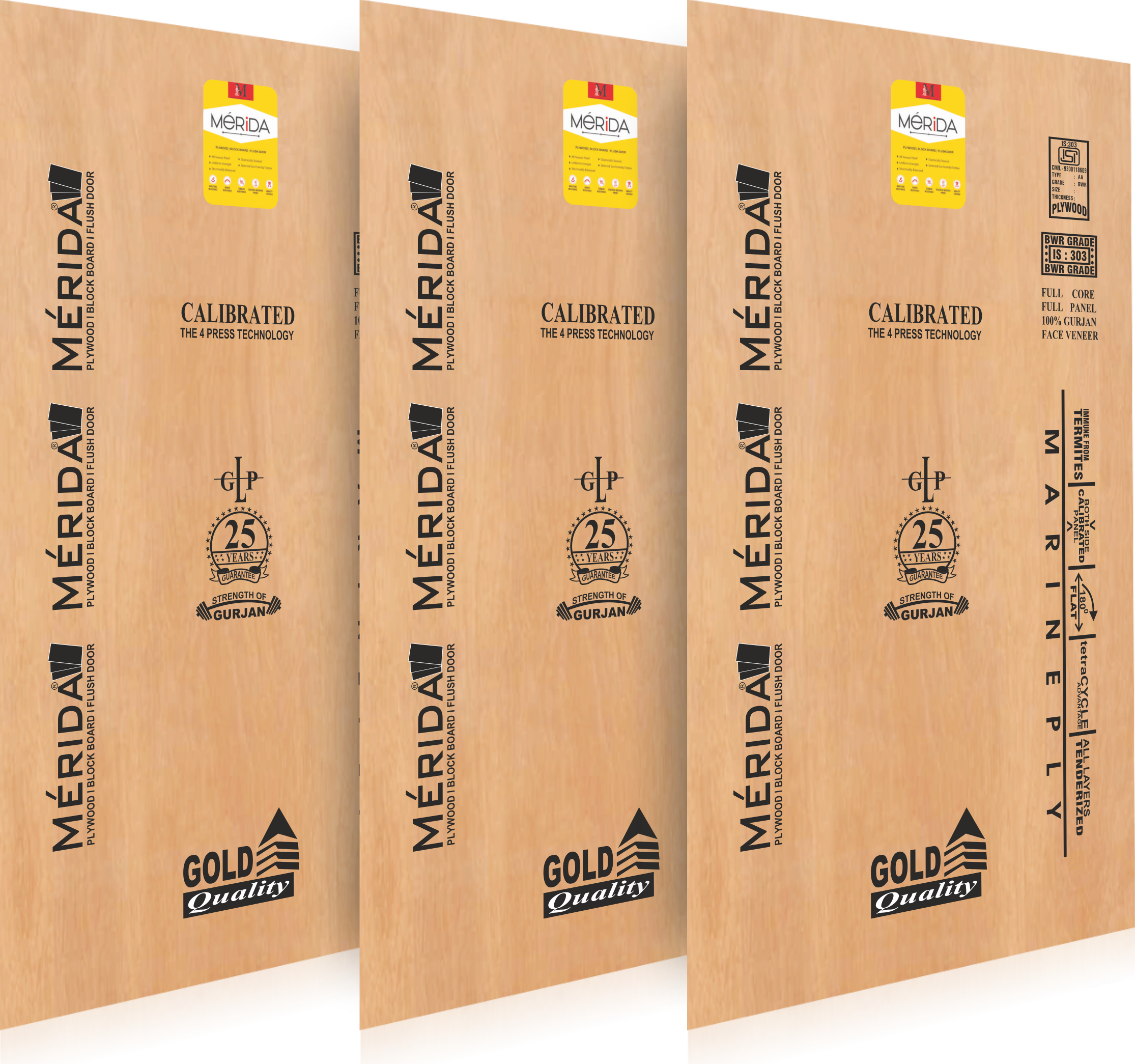

MERIDA GOLD Plywood is specially treated plywood that is designed to resist rotting in a high- moisture environment.
It is frequently used in the construction of docks, boats and other marine vessels.
Certified by the Bureau of Indian Standards and manufactured by Hardwood Timber (Eucalyptus)
MERIDA GOLD Plywood surpasses the required technicalities.
| Test Requirement | Specified Value | Observed Value |
|---|---|---|
| Workmanship and Finishing | Satisfactory | Satisfactory |
| Dimension a) Length b) Width c) Thickness |
+6 mm,-0mm +3mm,-0mm ±5% |
With In Limit With In Limit With In Limit |
| Squareness | 0.20% | 0.12% |
| Edge Straigntness | 0.20% 0.14% | |
| Moisture content | 5-15% | 7.26% |
| Resistance to Water (After cyclic test)-3 cycles of BWR Grade-8hr boiling & 16 hr drying@ 65 | Min Pass Standard | Pass Standard (No De lamination) |
| Modulus of Elasticity, N/MM2 a) Along the Grain i) Average ii) Min Individual b) Across the Grain i) Average ii) Min Individual | 5000 4500 2500 2200 | 6500 4700 2780 2400 |
| Modulus of Elasticity, N/MM2 a) Along the Grain i) Average ii) Min Individual b) Across the Grain i) Average ii) Min Individual | 40 36 20 18 | 55 41 27 22 |
